ND5210 Network Card Settings and Configuration

NDC COMMUNICATIONS, INC.

ND5210

NIC Type
Ethernet
Network Transfer Rate
10Mbps
Data Bus
32-bit PCI
Topology
Linear Bus
Wiring Type
RG-58A/U 50ohm coaxial
Boot ROM
Not available

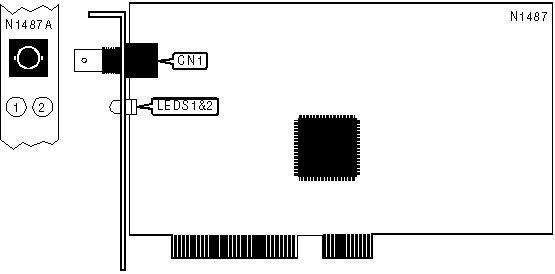

CONNECTIONS
Function
Label
RG-58A/U 50ohm coaxial port
CN1

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
Blinking
Data is being transmitted/received
LED1
Red
Off
Data is not being transmitted/received
LED2
Green
On
Power is on
LED2
Green
Off
Power is off
