NE2000PLUS-CTA Network Card Settings and Configuration
NATIONAL SEMICONDUCTOR CORPORATION
NE2000PLUS-CTA
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Boot ROM | Available |

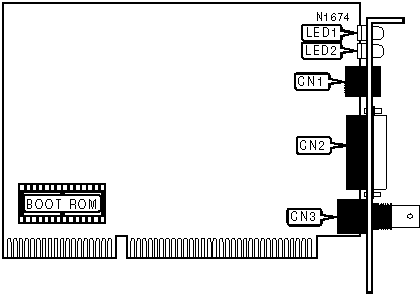

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | RG-58A/U 50ohm coaxial port | CN3 |
AUI transceiver via DB-15 port | CN2 | ||
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Polarity is good on 10Base-T |
LED1 | Off | Polarity is broken on 10Base-T |
LED2 | On | 10Base-T network connection is good |
LED2 | Off | 10Base-T network connection is broken |
Note: The locations of LED1 and LED2 is unidentified. | ||
