MFN-650FX SC Network Card Settings and Configuration
MACROMATE CORPORATION
MFN-650FX SC
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 100Mbps |
Topology | Star |
Wiring Type | Fiber optic cable |
Data Bus | 32-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |

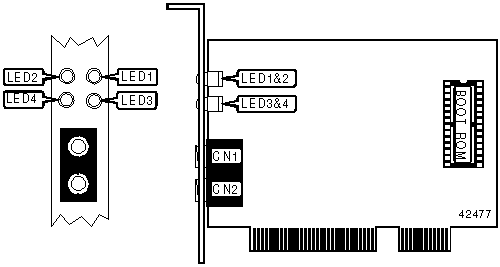

Fiber SC connector | CN1 | Fiber SC connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unidentified | On | Network connection is good |
LED1 | Unidentified | Off | Network connection is broken |
LED2 | Unidentified | Blinking | Data is being transmitted/received |
LED2 | Unidentified | Off | Data is not being transmitted/received |
LED3 | Unidentified | On | Collision detected on network |
LED3 | Unidentified | Off | No collision detected on network |
LED4 | Unidentified | On | Full duplex mode enabled |
LED4 | Unidentified | Off | Half duplex mode enabled |
