MC-950 Network Card Settings and Configuration

Card Type	Ethernet Converter
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Shielded twisted pair RG-58A/U 50ohm coaxial
Data Bus	External

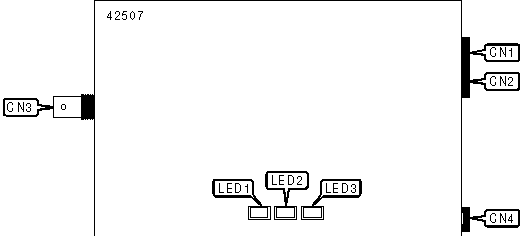

CONNECTIONS
Function	Label	Function	Label
RJ-45 UTP connector - Hub/Repeater	CN1	RG-58A/U connector	CN3
RJ-45 UTP connector - Workstation	CN2	AC power	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	Blinking	BNC port is active
LED1	Unidentified	Off	BNC port is inactive
LED2	Unidentified	On	Unit receiving power
LED2	Unidentified	Off	Unit not receiving power
LED3	Unidentified	On	UTP link is good
LED3	Unidentified	Blinking	UTP port is active
LED3	Unidentified	Off	UTP link is broken
