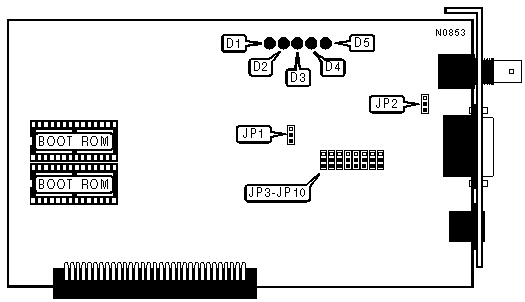

NU460 (VER. A) Network Card Settings and Configuration

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-Bit NuBus (Apple)
Topology:	Linear Bus Star
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair
Boot ROM	Available

CABLE TYPE
Type	JP3	JP4	JP5-JP10
AUI transceiver via DB-15 port	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
RG-58A/U 50ohm coaxial	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
Shielded/unshielded twisted pair	Pins 2 & 3 closed	Pins 2 & 3 closed	N/A

LINK INTEGRITY FUNCTION
Setting		JP1
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

ON-BOARD TERMINATOR
Setting		JP2
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

DIAGNOSTIC LEDS
LED	Status	Condition
D1	On	Twisted pair network connection is good
D1	Off	Twisted pair network connection is broken
D2	On	Data is being received
D2	Off	Data is not being received
D3	On	Data is being transmitted
D3	Off	Data is not being transmitted
D4	On	Collision detected on network
D4	Off	Normal operation
D5	On	Reversed polarity condition detected
D5	Off	Normal operation
