ETHERFAST 10/100 LAN CARD (LNE100TX) Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10/100Mbps (20/200Mbps full duplex)
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

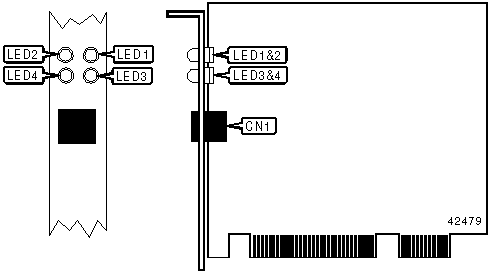

CONNECTIONS
Function	Label
RJ-45 UTP connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Network connection is good
LED1	Unidentified	Off	Network connection is broken
LED2	Unidentified	On	Network is operating at 100Mbps
LED2	Unidentified	Off	Network is operating at 10Mbps
LED3	Unidentified	Blinking	Data is being transmitted/received
LED3	Unidentified	Off	Data is not being transmitted/received
LED4	Unidentified	On	Full duplex mode enabled
LED4	Unidentified	Off	Half duplex mode enabled
