10/100TX ETHERFAST LAN CARD Network Card Settings and Configuration
LINKSYS
10/100TX ETHERFAST LAN CARD
NIC Type | Ethernet |
Transfer Rate | 10/100Mbps |
Data Bus | PCI |
Topology | Star |
Wiring Type | Shielded twisted pair Unshielded twisted pair |
Boot ROM | Not available |

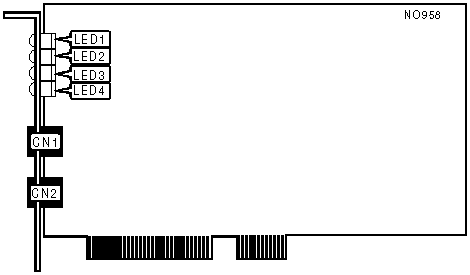

CONNECTIONS | |
Purpose | Location |
RJ-45 / 100Mbps | CN2 |
RJ-45 / 10Mbps | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | 100 Mbps connection speed |
LED1 | Yellow | Off | 10 Mbps connection speed |
LED2 | Green | Blinking | Data is being transmitted |
LED2 | Green | On | Power is on |
LED2 | Green | Off | Power is off |
LED3 | Green | On | Data is being received |
LED3 | Green | Off | Data is not being received |
LED4 | Green | On | Data collisions are occuring |
LED4 | Green | Off | Data collisions are not occuring |
