EN2000/CT Network Card Settings and Configuration
LANTECH COMPUTER CORPORATION

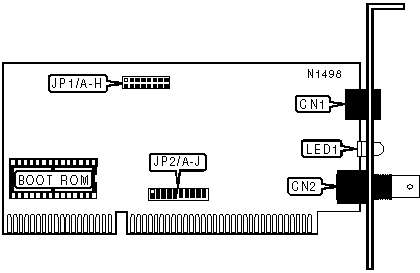

EN2000/CT
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |
CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | RG-58A/U 50ohm coaxial port | CN2 |
CONFIGURATION SELECTION | ||
Setting | JP2/A | JP2/B |
Software configures I/O Base address, Boot ROM address and Interrupt | Open | Closed |
Hardware configures I/O Base address, Boot ROM address and Interrupt | Closed | Open |
Note: Jumpers JP1/C-JP1/J and JP2 must be set if hardware configuration is selected. If software configuration is selected JP1/A, JP1/C-J and JP2 should be open. | ||
BASE I/O ADDRESS SELECTION | |||
Address | JP1/A | JP1/B | JP1/C |
300h | Open | Open | Open |
320h | Closed | Open | Open |
340h | Open | Closed | Open |
360h | Closed | Closed | Open |
200h | Open | Open | Closed |
220h | Closed | Open | Closed |
240h | Open | Closed | Closed |
260h | Closed | Closed | Closed |
BOOT ROM SELECTION | |||||
Size | JP1/D | JP1/E | JP1/F | JP1/G | JP1/H |
Disabled | N/A | N/A | N/A | Open | Open |
C000h, 16KB | Open | Open | Open | Open | Closed |
C400h, 16KB | Closed | Open | Open | Open | Closed |
C800h, 16KB | Open | Closed | Open | Open | Closed |
CC00h, 16KB | Closed | Closed | Open | Open | Closed |
D000h, 16KB | Open | Open | Closed | Open | Closed |
D400h, 16KB | Closed | Open | Closed | Open | Closed |
D800h, 16KB | Open | Closed | Closed | Open | Closed |
DC00h, 16KB | Closed | Closed | Closed | Open | Closed |
C000h, 32KB | Open | Open | Open | Closed | Open |
C800h, 32KB | Closed | Open | Open | Closed | Open |
D000h, 32KB | Open | Closed | Open | Closed | Open |
D800h, 32KB | Closed | Closed | Open | Closed | Open |
C000h, 64KB | Open | Open | Closed | Closed | Open |
D000h, 64KB | Closed | Open | Closed | Closed | Open |
INTERRUPT SELECTION | ||||||||
IRQ | JP2/C | JP2/D | JP2/E | JP2/F | JP2/G | JP2/H | JP2/I | JP2/J |
2/9 | Open | Open | Open | Open | Open | Open | Open | Closed |
3 | Open | Open | Open | Open | Open | Open | Closed | Open |
4 | Open | Open | Open | Open | Open | Closed | Open | Open |
5 | Open | Open | Open | Open | Closed | Open | Open | Open |
10 | Open | Open | Open | Closed | Open | Open | Open | Open |
11 | Open | Open | Closed | Open | Open | Open | Open | Open |
12 | Open | Closed | Open | Open | Open | Open | Open | Open |
15 | Closed | Open | Open | Open | Open | Open | Open | Open |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Data is being transmitted/received |
LED1 | Off | Data is not being transmitted/received |
