E-NET/16F Network Card Settings and Configuration
LANTECH COMPUTER COMPANY
E-NET/16F
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Ring |
Wiring Type | Fiber optic cable |
Boot ROM | Available |
CONNECTIONS | |||
Function | Label | Function | Label |
Fiber optic cable port (TX) | CN1 | Fiber optic cable port (RX) | CN2 |

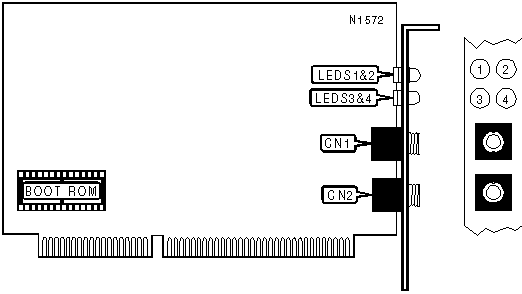

DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Data is being transmitted |
LED1 | Off | Data is not being transmitted |
LED2 | On | Collision is detected on network |
LED2 | Off | Collision is not detected on network |
LED3 | On | Data is being received |
LED3 | Off | Data is not being received |
LED4 | On | Network connection is good |
LED4 | Off | Network connection is broken |
