LANCAST
ENT-4220-33
Card Type | Ethernet repeater |
Network Transfer Rate | 10Mbps |
Data Bus | External |
Topology | Linear Bus |
Wiring Type | RG-58A/U 50ohm coaxial |

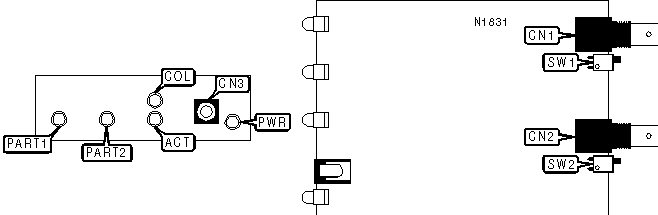

CONNECTIONS | |||
Function | Label | Function | Label |
Segment 1 RG-58A/U 50ohm coaxial | CN1 | DC power | CN3 |
Segment 2 RG-58A/U 50ohm coaxial | CN2 |
USER CONFIGURABLE SETTINGS | ||
Setting | Label | Position |
Segment 1 terminated | SW1 | On |
Segment 1 not terminated | SW1 | Off |
Segment 2 terminated | SW2 | On |
Segment 2 not terminated | SW2 | Off |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
PART1 | Yellow | On | Multiple collisions detected on segment 1 |
PART1 | Yellow | Off | Multiple collisions not detected on segment 1 |
PART2 | Yellow | On | Multiple collisions detected on segment 2 |
PART2 | Yellow | Off | Multiple collisions not detected on segment 2 |
COL | Amber | On | Collision detected |
COL | Amber | Off | Collision not detected |
ACT | Yellow | On | Repeater is transmitting or receiving |
ACT | Yellow | Off | Repeater is not transmitting or receiving |
PWR | Green | On | Power is on |
PWR | Green | Off | Power is off |
