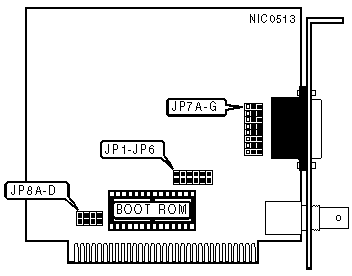

ENC-4101 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		JP1	JP2
»	300 - 31Fh	Closed	Closed
	320 - 33Fh	Open	Closed
	340 - 35Fh	Closed	Open
	360 - 37Fh	Open	Open

BOOT ROM ADDRESS
Base Address		JP3	JP4	JP5
	C0000 - C3FFFh	Closed	Closed	Closed
	C4000 - C7FFFh	Open	Closed	Closed
»	C8000 - CBFFFh	Closed	Open	Closed
	CC000 - CFFFFh	Open	Open	Closed
	D0000 - D3FFFh	Closed	Closed	Open
	D4000 - D7FFFh	Open	Closed	Open
	D8000 - DBFFFh	Closed	Open	Open
	DC000 - DFFFFh	Open	Open	Open

BOOT ROM
Setting		JP6
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		JP7A - JP7G
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

INTERRUPT REQUEST
IRQ		JP8A	JP8B	JP8C	JP8D
	2	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed
