4116-03 Network Card Settings and Configuration

LANCAST

4116-03

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
8/16-bit ISA
Topology
Linear Bus
Wiring Type
RG-58A/U 50ohm coaxial

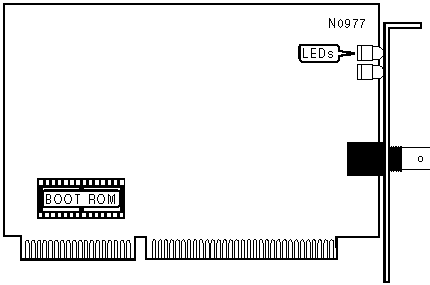

Boot ROM
Available

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Yellow
On
Data is being transmitted/received
LED1
Yellow
Off
Data is not being transmitted/received
LED2
Yellow
On
Collisions detected
LED2
Yellow
Off
No collisions detected
Note: Relative position of LEDs unidentified.
