KYE INTERNATIONAL CORPORATION
GE2500+ PCI
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | PCI |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |

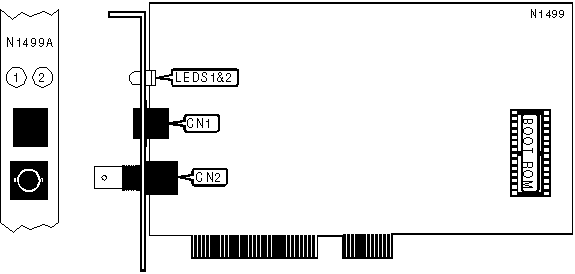

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | RG-58A/U 50ohm coaxial port | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | 10Base-T network connection is good |
LED1 | green | Off | 10Base-T network connection is broken |
LED2 | Yellow | Blinking | Data is being transmitted/received |
LED2 | Yellow | Off | Data is not being transmitted/received |
