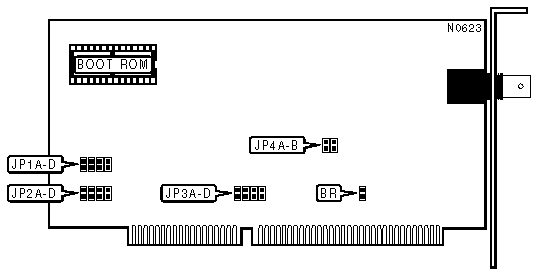

ETHERX KNE2102 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG58A/U 50ohm coaxial
Boot ROM	Available

BOOT ROM
Mode	BR
Disabled	Open
Enabled	Closed

DMA CHANNEL
Channel	JP1A	JP1B	JP1C	JP1D	JP2A	JP2B	JP2C	JP2D
DMA3	Open	Open	Open	Closed	Open	Open	Open	Closed
DMA5	Open	Open	Closed	Open	Open	Open	Closed	Open
DMA6	Open	Closed	Open	Open	Open	Closed	Open	Open
DMA7	Closed	Open	Open	Open	Closed	Open	Open	Open

INTERRUPT SETTINGS
IRQ	JP3A	JP3B	JP3C	JP3D
3	Closed	Open	Open	Open
4	Open	Closed	Open	Open
5	Open	Open	Closed	Open
9	Open	Open	Open	Closed

BASE I/O ADDRESS
Address		JP4A	JP4B
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open
