DP-200/S Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	100Mbps
Topology	Star bus
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

CONNECTIONS
Function	Label

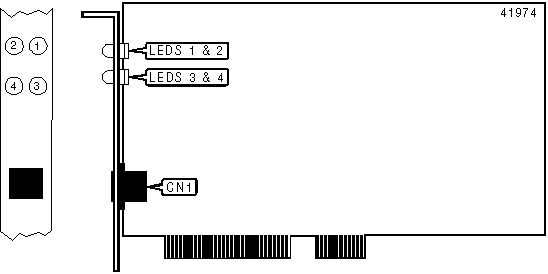

UTP connector	CN1

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Data is being transmitted/received between adapter and 100BASE-TX hub.
LED1	Off	Data is not being transmitted/received between adapter and 100BASE-TX hub.
LED3	On	Data is being transmitted/received between adapter and hub.
LED3	Off	Data is not being transmitted/received between adapter and hub.
LED4	Blinking	Network traffic is present
LED4	Off	No traffic for either speed
Note: On some versions of this card LED2 is present, however, it has no function.
