DP1612 Network Card Settings and Configuration
KATRON TECHNOLOGIES, INC.
DP1612
NIC Type | 100VG (Ethernet compatible) |
Network Transfer Rate | 10/100Mbps |
Data Bus | 16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available |

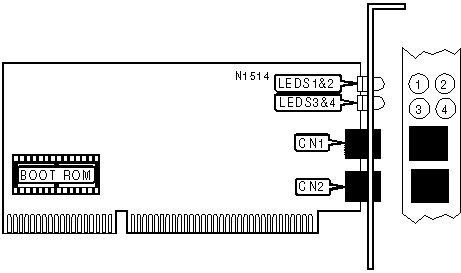

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port (100VG) | CN1 | Unshielded twisted pair port (10Base-T) | CN2 |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | 100Mbps operation is selected |
LED1 | Off | 100Mbps operation is not selected |
LED2 | On | 10Mbps operation is selected |
LED2 | Off | 10Mbps operation is not selected |
LED3 | On | Network connection is good |
LED3 | Off | Network connection is broken |
LED4 | On | Data is being transmitted/received |
LED4 | Off | Data is not being transmitted/received |
