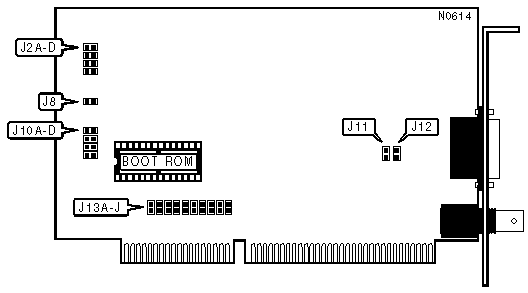

2000C V3.0 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB15
Boot ROM	Available

BOOT ROM ADDRESS
Address		J2A	J2B	J2C	J2D
	Disabled	N/A	N/A	N/A	Open
	C0000h	Open	Open	Open	Closed
	C4000h	Open	Open	Closed	Closed
»	C8000h	Open	Closed	Open	Closed
	CC000h	Open	Closed	Closed	Closed
	D0000h	Closed	Open	Open	Closed
	D4000h	Closed	Open	Closed	Closed
	D8000h	Closed	Closed	Open	Closed
	DC000h	Closed	Closed	Closed	Closed

CABLE TYPE
Type	J11	J12
RG58A/U 50ohm coaxial	Closed	Open
AUI transceiver via DB-15 port	Open	Closed

COMPATIBILITY MODE
Setting	J8
Normal operation	Open
Compatible opertation	Closed

BASE I/O ADDRESS
Address		JP10A	JP10B	JP10C	JP10D
»	300h	Closed	Closed	Closed	Closed
	320h	Closed	Closed	Closed	Open
	340h	Closed	Closed	Open	Closed
	360h	Closed	Closed	Open	Open
	380h	Closed	Open	Closed	Closed
	200h	Open	Closed	Closed	Closed
	220h	Open	Closed	Closed	Open
	240h	Open	Closed	Open	Closed
	260h	Open	Closed	Open	Open
	280h	Open	Open	Closed	Closed
	2A0h	Open	Open	Closed	Open
	2C0h	Open	Open	Open	Closed

INTERRUPT SETTINGS
IRQ	JP13A	JP13B	JP13C	JP13D	JP13E	JP13F	JP13G	JP13H	JP13I	JP13J
2/9	Open	Open	Open	Open	Open	Open	Open	Open	Open	Closed
3	Open	Open	Open	Open	Open	Open	Open	Open	Closed	Open
4	Open	Open	Open	Open	Open	Open	Open	Closed	Open	Open
5	Open	Open	Open	Open	Open	Open	Closed	Open	Open	Open
7	Open	Open	Open	Open	Open	Closed	Open	Open	Open	Open
10	Open	Open	Open	Open	Closed	Open	Open	Open	Open	Open
11	Open	Open	Open	Closed	Open	Open	Open	Open	Open	Open
12	Open	Open	Closed	Open	Open	Open	Open	Open	Open	Open
14	Open	Closed	Open	Open	Open	Open	Open	Open	Open	Open
15	Closed	Open	Open	Open	Open	Open	Open	Open	Open	Open
