ETHERNETEXPRES PRO/100+ DUAL PORT SERVER ADAPTER (PILA8472) Network Card Settings and Configuration







INTEL CORPORATION

ETHERNETEXPRES PRO/100+ DUAL PORT SERVER ADAPTER (PILA8472)

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

6KB cache per port

Boot ROM

Not available

Network Transfer Rate

100Mbps/10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

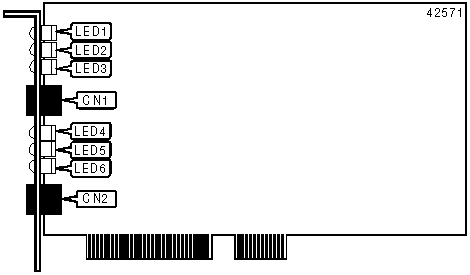

CONNECTIONS

Function

Label

Function

Label

Port 1 via RJ-45 UTP connector

CN1

Port 2 via RJ-45 UTP connector

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Port 1 network connection is good

LED1

Unidentified

Off

Port 1 network connection is not good

LED2

Unidentified

Blinking

Data is being received on port 1

LED2

Unidentified

Off

Data is not being received on port 1

LED3

Unidentified

On

Port 1 is operating at 100 Mbps

LED3

Unidentified

Off

Port 1 is operating at 10 Mbps

LED4

Unidentified

On

Port 2 network connection is good

LED4

Unidentified

Off

Port 2 network connection is not good

LED5

Unidentified

Blinking

Data is being received on port 2

LED5

Unidentified

Off

Data is not being received on port 2

LED6

Unidentified

On

Port 2 is operating at 100 Mbps

LED6

Unidentified

Off

Port 2 is operating at 10 Mbps
