ETHEREXPRESS PRO 10+ PCI Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	32-bit PCI
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

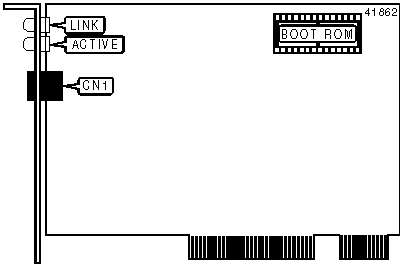

CONNECTIONS
Function	Label
Unshielded twisted pair	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Yellow	Off	UTP link is broken
LINK	Yellow	On	UTP link is good
ACTIVE	Green	Off	Data is not being transmitted or received
ACTIVE	Green	On	Data is being transmitted or received
