HP J2585B Network Card Settings and Configuration
HEWLETT-PACKARD COMPANY
HP J2585B
NIC Type | Ethernet, |
Network Transfer Rate | 10/100Mbps |
Data Bus | 32-bit PCI |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available (location unidentified) |

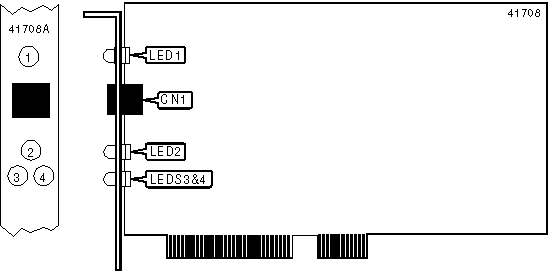

CONNECTIONS | |
Function | Label |
Unshielded twisted pair port | CN1 |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | 100Mbps connection is selected |
LED1 | Off | 100Mbps connection is not selected |
LED2 | On | 10Mbps connection is selected |
LED2 | Off | 10Mbps connection is not selected |
LED3 | On | Data is being transmitted/received |
LED3 | Off | Data is not being transmitted/received |
LED4 | On | Network connection is good |
LED4 | Off | Network connection is broken |
