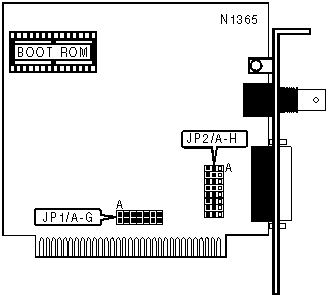

8-BIT 10BASE2 Network Card Settings and Configuration

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

Rg-58C/A

Boot ROM

Available

BOOT ROM CONFIGURATION

Setting

JP1/A

Enabled

Closed

»

Disabled

Open

ADDRESS SELECTION

Base I/O Address

Boot ROM Address

JP1/B

JP1/C

300h

C800h

Closed

Closed

320h

CC00h

Open

Closed

340h

D000h

Closed

Open

360h

D400h

Open

Open

INTERRUPT SELECTION

IRQ

JP1/D

JP1/E

JP1/F

JP1/G

»

3

Closed

Open

Open

Open

4

Open

Closed

Open

Open

5

Open

Open

Closed

Open

CABLE TYPE SELECTION

Cable Type

JP2/A

JP2/B

JP2/C

JP2/D

JP2/E

JP2/F

JP2/G

JP2/H

AUI Transceiver via DB-15 port

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

»

RG-58A/U 50ohm coaxial

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.
