MAC TRANSCEIVER-CT Network Card Settings and Configuration
GLOBAL DATA SUPPLY
MAC TRANSCEIVER-CT
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star, linear bus |
Wiring Type | RJ-45 Unshielded twisted pair RG-58 A/U 50ohm coaxial AUI transceiver via DB-15 port |
Data Bus | External |

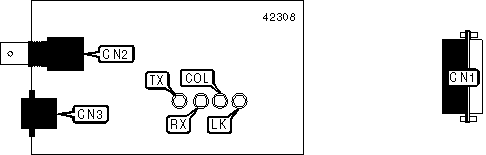

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | RJ-45 UTP connector | CN3 |
RG-58 A/U 50ohm coaxial | CN2 | ||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
RX | Unidentified | Blinking | Data is being received |
RX | Unidentified | Off | Data is not being received |
COL | Unidentified | Blinking | Collision detected on network |
COL | Unidentified | Off | No collision detected on network |
LK | Unidentified | Blinking | UTP link is good |
LK | Unidentified | Off | UTP link is broken |
