ETHERLAN A1-LC, ETHERLAN A1-LC/FPU Network Card Settings and Configuration
FOCUS ENHANCEMENTS, INC.
ETHERLAN A1-LC, ETHERLAN A1-LC/FPU
NIC Type | Ethernet |
Chip Set | National Semiconductor DP83901 |
Maximum Onboard Memory | 64KB SRAM |
NPU Options | Motorola 68882 |
Network Transfer Rate | 10Mbps |
Data Bus | LC PDS |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Not available |

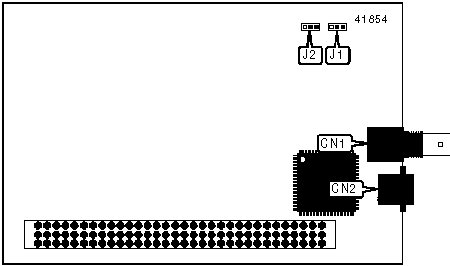

CONNECTIONS | |||
Function | Label | Function | Label |
RG-58A/U 50ohm coaxial connector | CN1 | Unshielded twisted pair connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | Link function enabled | J2 | Pins 1 & 2 closed |
Link function disabled | J2 | Pins 2 & 3 closed | |
CABLE TYPE SELECTION | |
Setting | J1 |
Unshielded twisted pair | Pins 1 & 2 closed |
RG-58A/U 50ohm coaxial | Pins 2 & 3 closed |
