EN5100 PCI BUS ETHERNET ADAPTER Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Unidentified
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI

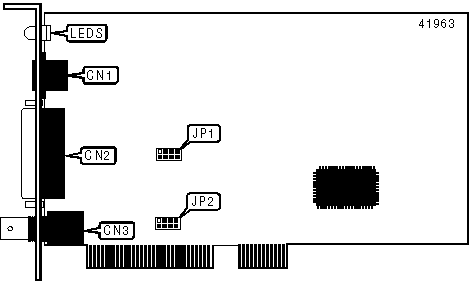

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	RG-58A/U connector	CN3
AUI connector	CN2

USER CONFIGURABLE SETTINGS
Setting		JP1/1	JP1/2	JP1/3	JP1/4
»	AUI connector enabled	Closed	Open	Open	Open
	BNC connector enabled	Open	Open	Open	Closed
Note: Jumper settings not required when using RJ-45 connnector

PCI INTERRUPT SELECTION
Setting		JP2/1	JP2/2	JP2/3	JP2/4
»	INTA	Closed	Open	Open	Open
	INTB	Open	Closed	Open	Open
	INTC	Open	Open	Closed	Open
	INTD	Open	Open	Open	Closed

DIAGNOSTIC LED(S)

Note: Function of LEDs is unidentified.
