EN-7016 (Version 1.0) Network Card Settings and Configuration
EDIMAX COMPUTER COMPANY
EN-7016 (Version 1.0)
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star Linear Bus |
Wiring Type | RG-58A/U 50ohm coaxial Unshielded twisted pair AUI transceiver via DB-15 port |
Boot ROM | Available |

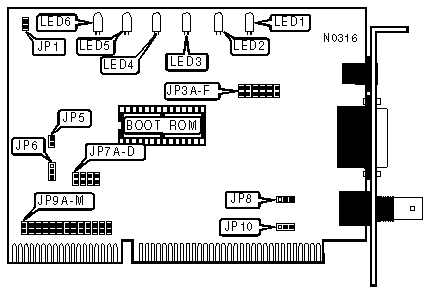

CONNECTORS | |
Setting | Jumper |
External power LED | JP1 |
CABLE TYPE | ||||
Type | JP3A-JP3F | JP8 | JP10 | |
| » | RG-58A/U 50ohm coaxial | Open | Pins 1 & 2 closed | Pins 2 & 3 closed |
Unshielded twisted pair | Closed | Pins 2 & 3 closed | Pins 2 & 3 closed | |
AUI transceiver via DB-15 port | Open | Pins 2 & 3 closed | Pins 1 & 2 closed | |
BOOT ROM | ||
Setting | JP5 | |
| » | Disabled | Open |
Enabled | Closed | |
COMPATIBILITY MODE ENABLE | ||
Mode | JP6 | |
| » | Normal | Pins 1 & 2 closed |
Compatibility mode enabled | Pins 2 & 3 closed | |
Note: If card does not operate properly with your computer, try enabling the compatibility mode. | ||
BOOT ROM ADDRESS | |||||
Address | JP7A | JP7B | JP7C | JP7D | |
C0000h | Closed | Closed | Closed | Closed | |
C4000h | Closed | Closed | Closed | Open | |
| » | C8000h | Closed | Closed | Open | Closed |
CC000h | Closed | Closed | Open | Open | |
D0000h | Closed | Open | Closed | Closed | |
D4000h | Closed | Open | Closed | Open | |
D8000h | Closed | Open | Open | Closed | |
DC000h | Closed | Open | Open | Open | |
INTERRUPT SETTINGS | ||||||||||||
IRQ | JP9A | JP9B | JP9C | JP9D | JP9E | JP9F | JP9G | JP9H | JP9I | JP9J | JP9K | |
| » | 3 | Open | Open | Open | Open | Open | Open | Open | Open | Open | Open | Closed |
4 | Open | Open | Open | Open | Open | Open | Open | Open | Open | Closed | Open | |
5 | Open | Open | Open | Open | Open | Open | Open | Open | Closed | Open | Open | |
6 | Open | Open | Open | Open | Open | Open | Open | Closed | Open | Open | Open | |
7 | Open | Open | Open | Open | Open | Open | Closed | Open | Open | Open | Open | |
9 | Open | Open | Open | Open | Open | Closed | Open | Open | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | Open | Open | Open | Open | |
11 | Open | Open | Open | Closed | Open | Open | Open | Open | Open | Open | Open | |
12 | Open | Open | Closed | Open | Open | Open | Open | Open | Open | Open | Open | |
14 | Open | Closed | Open | Open | Open | Open | Open | Open | Open | Open | Open | |
15 | Closed | Open | Open | Open | Open | Open | Open | Open | Open | Open | Open | |
I/O BASE ADDRESS | |||
Address | JP9L | JP9M | |
| » | 300h | Closed | Closed |
320h | Closed | Open | |
340h | Open | Closed | |
360h | Open | Open | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | On | Card is transmitting for an extended amount of time |
LED1 | Red | Off | Normal operation |
LED2 | Green | On | Data is being transmitted |
LED2 | Green | Off | Data is not being transmitted |
LED3 | Green | On | Data is being received |
LED3 | Green | Off | Data is not being received |
LED4 | Red | On | A collision is detected on the network |
LED4 | Red | Off | Normal operation |
LED5 | Yellow | On | A reversed polarity twisted pair is detected |
LED5 | Yellow | Off | Normal operation |
LED6 | Green | On | Network connection is good |
LED6 | Green | Off | Network connection is broken |
