EN-2000PXA (VER. 2) Network Card Settings and Configuration
EDIMAX COMPUTER COMPANY
EN-2000PXA (VER. 2)
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 10Mbps |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Data Bus | 16-bit ISA |
CONNECTIONS | |||
Function | Label | Function | Label |

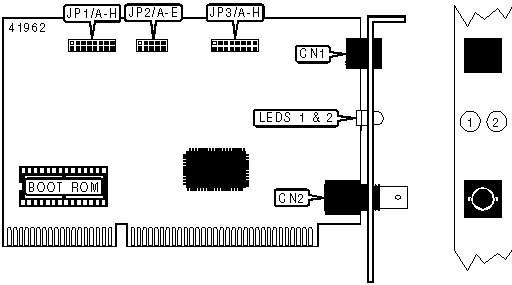

RJ-45 connector | CN1 | BNC connector | CN2 |
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
Factory configured - do not alter. | JP1/8 | Unidentified |
BASE I/O ADDRESS SELECT | ||||
Address | JP1/A | JP1/B | JP1/C | JP1/D |
200h | Open | Closed | Open | Open |
220h | Open | Closed | Open | Closed |
240h | Open | Closed | Closed | Open |
260h | Open | Closed | Closed | Closed |
280h | Closed | Closed | Open | Open |
2A0h | Closed | Closed | Open | Closed |
2C0h | Closed | Closed | Closed | Open |
2E0h | Closed | Closed | Closed | Closed |
300h | Open | Open | Open | Open |
320h | Open | Open | Open | Closed |
340h | Open | Open | Closed | Open |
360h | Open | Open | Closed | Closed |
380h | Closed | Open | Open | Open |
3A0h | Closed | Open | Open | Closed |
3C0h | Closed | Open | Closed | Open |
3E0h | Closed | Open | Closed | Closed |
IRQ SELECT | |||
IRQ | JP1/E | JP1/F | JP1/G |
2/9 | Open | Open | Open |
3 | Open | Open | Closed |
4 | Open | Closed | Open |
5 | Open | Closed | Closed |
10 | Closed | Open | Open |
11 | Closed | Open | Closed |
12 | Closed | Closed | Open |
15 | Closed | Closed | Closed |
BOOT ROM ADDRESS SELECT | ||||||
Address | Size | JP2/A | JP2/B | JP2/C | JP2/D | JP2/E |
C0000h | 16K | Closed | Open | Open | Open | Open |
C4000h | 16K | Closed | Open | Open | Open | Closed |
C8000h | 16K | Closed | Open | Open | Closed | Open |
CC000h | 16K | Closed | Open | Open | Closed | Closed |
D0000h | 16K | Closed | Open | Closed | Open | Open |
D4000h | 16K | Closed | Open | Closed | Open | Closed |
D8000h | 16K | Closed | Open | Closed | Closed | Open |
DC000h | 16K | Closed | Open | Closed | Closed | Closed |
C0000h | 32K | Open | Closed | Open | Open | Open |
C8000h | 32K | Open | Closed | Open | Open | Closed |
D0000h | 32K | Open | Closed | Open | Closed | Open |
D8000h | 32K | Open | Closed | Open | Closed | Closed |
C0000h | 64K | Open | Closed | Closed | Open | Open |
D0000h | 64K | Open | Closed | Closed | Open | Closed |
Boot ROM disabled | None | Open | Open | Open | Open | Open |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | UTP link is good |
LED1 | Green | Off | UTP link is broken |
LED2 | Red | On | Power enabled |
LED2 | Red | Blinking | Network activity present |
LED2 | Red | Off | Power/network activity disabled |
