NE32HUB-PME Network Card Settings and Configuration
EAGLE TECHNOLOGY
NE32HUB-PME
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 8-bit ISA |
Topology | Linear bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Not available |

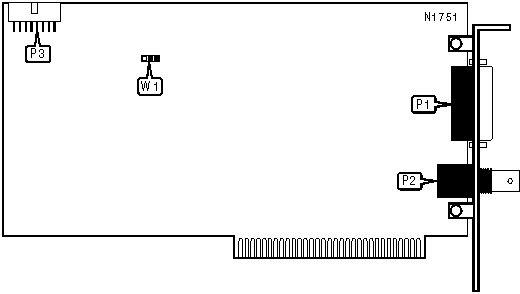

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 port | P1 | NE32HUB-Base or -TPE connector | P3 |
RG-58A/U 50ohm coaxial connector | P2 | ||
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
Card uses AUI connector | W1 | Pins 1 & 2 closed |
Card uses coaxial connector | W1 | Pins 2 & 3 closed |
MISCELLANEOUS TECHNICAL NOTES |
When viewed from the rear of the machine, the NE32HUB-Base card must be installed to the left of all other NE32HUB cards. For the NE32HUB-Base and NE32HUB-TPE cards, see documents N1749 and N1750. |
