DIGITAL EQUIPMENT CORPORATION
ETHERWORKS TURBO PCI (DE435-AA)
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 20Mbps |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Data Bus | 32-bit PCI |

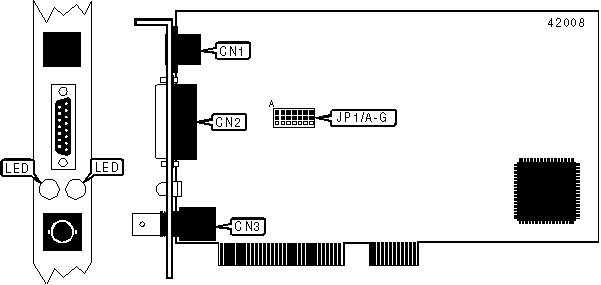

CONNECTIONS | |||
Function | Label | Function | Label |
UTP connector | CN1 | RG-58A/U connector | CN3 |
AUI connector | CN2 |
CONNECTION TYPE | ||||||||
Connection Type | JP1/A | JP1/B | JP1/C | JP1/D | JP1/E | JP1/F | JP1/G | |
» | 10Base2 ThinWire
connection | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
Ethernet via. AUI cable connection | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | |
10BaseT twister pair connection | All pins open | All pins open | All pins open | All pins open | All pins open | All pins open | All pins open | |
Note: Above settings are for AUI connector only. Settings for UTP and RG-58A/U connectors are software configurable |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | On | Data is being transmitted/received |
LED1 | Red | Blinking | Data is being transmitted/received |
LED1 | Red | Off | Data is not being transmitted/received |
LED2 | Green | On | Network connection is good |
LED2 | Green | Blinking | Network connection is breaking |
LED2 | Green | Off | Network connection is broken |
Note: Exact location of LED’s is unidentified. |
