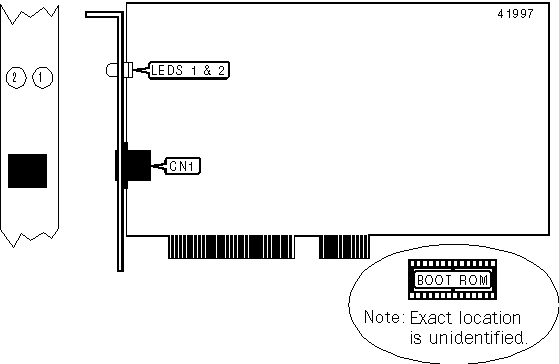

EB143 Network Card Settings and Configuration
DIGITAL EQUIPMENT CORPORATION
EB143
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 100Mbps/10Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | 32-bit PCI |
CONNECTIONS | |
Function | Label |
UTP connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Yellow | On | Data is being transmitted/received |
LED2 | Yellow | Off | Data is not being transmitted/received |
