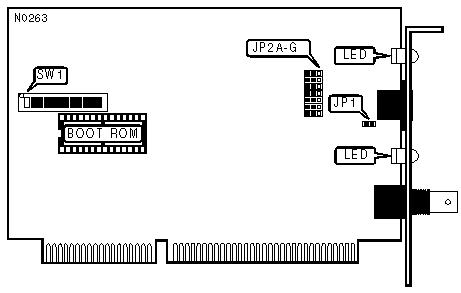

DEC EtherWORKS Turbo_TP/BNC Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star Linear Bus
Wiring Type	Shielded/Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

CABLE TYPE
Type		JP1	JP2A - JP2G
»	RG-58A/U 50ohm coaxial	N/A	Pins 2 & 3 Closed
	Shielded Twisted Pair	Closed	Pins 1 & 2 Closed
	Shielded/Unshielded twisted pair	Open	Pins 1 & 2 Closed

BASE MEMORY ADDRESS
Address		Buffer Size	SW1/1	SW1/2	SW1/3	SW1/4
	C0000-CFFFFh	64KB	On	On	On	On
	C8000-CFFFFh	32KB	On	On	Off	Off
»	D0000-DFFFFh	64KB	On	Off	On	On
	D8000-DFFFFh	32KB	On	Off	Off	Off
	E0000-EFFFFh	64KB	Off	On	On	On
	E8000-EFFFFh	32KB	Off	On	Off	Off

I/O BASE ADDRESS
Address		SW1/5
»	300 - 30Fh	On
	200 - 20Fh	Off

BOOT ROM
Setting		SW1/6
»	Disabled	On
	Enabled	Off

BOOT ROM TIMEOUT
Setting		SW1/7
»	Boot ROM timeout select 30 seconds	Off
	Boot ROM timeout select 150 seconds	On

INTERRUPT REQUEST
IRQ		SW1/8	SW1/9	SW1/10	SW1/11	SW1/12
»	5	On	Off	Off	Off	Off
	9	Off	On	Off	Off	Off
	10	Off	Off	On	Off	Off
	11	Off	Off	Off	On	Off
	15	Off	Off	Off	Off	On

DIAGNOSTIC LED(S)
Color	Status	Condition
Amber	On for 20 sec., then off	Card is performing a self-test
Amber	On	Fault has occurred, displays error code on screen.
Green	Blinking	Data is being received
Green	Off	Data is not being received
