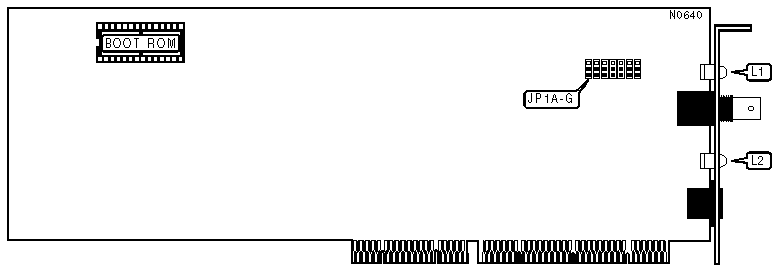

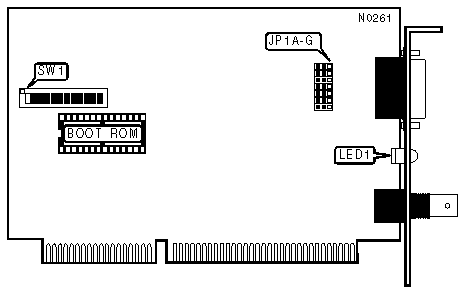

DEC ETHERWORKS EISA Network Card Settings and Configuration
DIGITAL EQUIPMENT CORPORATION
DEC ETHERWORKS EISA
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit EISA/32-bit EISA |
Topology | Linear bus |
Wiring Type | Unshielded twisted pair RG58A/U 50ohm coaxial |
Boot ROM | Available |
CABLE TYPE | ||
Type | JP1A-G | |
Unshielded twisted pair | Pins 1 & 2 closed | |
| » | RG58A/U 50ohm coaxial | Pins 2 & 3 closed |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
L1 | Green | On | Link integrity test/traffic detected on network |
L1 | Green | Off | Network idle/power Off |
L2 | Amber | On | Traffic detected on network |
L2 | Amber | Off | Network idle/power Off |
Note:L1 is only functional when utilizing 10BaseT, and L2 is only functional when utilizing 10Base2. | |||
MISCELLANEOUS NOTES |
Software included with the card must be used in order to fully configure it. For first-time installation, run the configuration software before physically installing the card, else software conflicts may prevent proper installation. |
