DEC ETHERWORKS MC_TP/BNC Network Card Settings and Configuration
DIGITAL EQUIPMENT CORPORATION
DEC ETHERWORKS MC_TP/BNC
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 32-bit MCA |
Topology | Star Linear Bus |
Wiring Type | Shielded/Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |
CABLE TYPE | |||

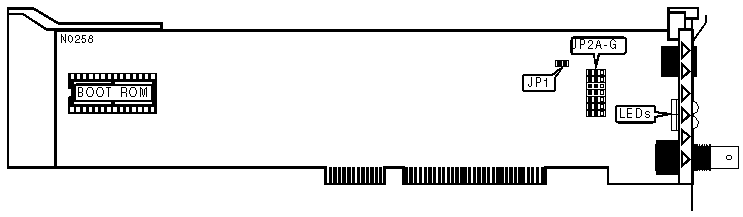

Type | JP1 | JP2A - JP2G | |
| » | RG-58A/U 50ohm coaxial | N/A | Pins 2 & 3 Closed |
Shielded/Unshielded twisted pair (10Base-T standard) | Open | Pins 1 & 2 Closed | |
Shielded Twisted Pair (non 10Base-T networks) | Closed | Pins 1 & 2 Closed | |
DIAGNOSTIC LED(S) | ||
Color | Status | Condition |
Amber | On for 20 sec., then off | Card is performing a self-test |
Amber | On | Fault has occurred, displays error code on screen. |
Green | Blinking | Data is being received |
Green | Off | Data is not being received |
MISCELLANEOUS NOTES |
Software that is supplied with the card must be run in order to fully configure it. |
