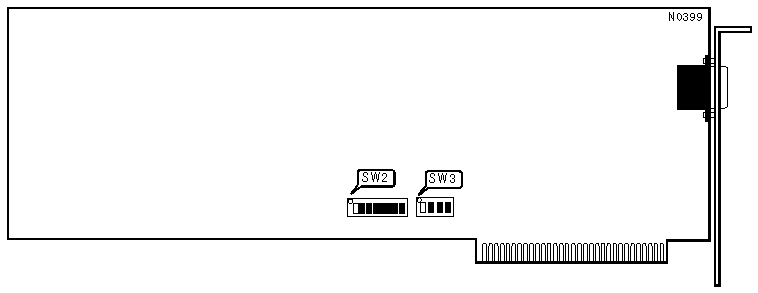

DL2000 Network Card Settings and Configuration







DAYNA COMMUNICATIONS, INC.

DL2000

NIC Type

LocalTalk

Transfer Rate

230.4Kbps

Data Bus

8-bit ISA

Topology

Star

Wiring Type

LocalTalk, PhoneNET, or compatible

Boot ROM

Not available

I/O BASE ADDRESS

Address

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

SW2/6

SW2/7

SW2/8

200h

Off

On

On

On

On

On

Off

On

240h

Off

On

Off

On

On

On

Off

On

260h

Off

On

Off

Off

On

On

Off

On

2A0h

Off

On

On

Off

Off

On

Off

On

320h

Off

On

On

Off

On

Off

Off

On

340h

Off

On

Off

On

On

Off

Off

On

INTERRUPT REQUEST

IRQ

SW3/1

SW3/2

SW3/3

SW3/4



3

On

Off

Off

Off



4

Off

On

Off

Off

»

5

Off

Off

On

Off



Polled I/O

Off

Off

Off

Off

MISCELLANEOUS NOTES

This card allows interconnection of Apples/Macs and IBM PC compatibles.
