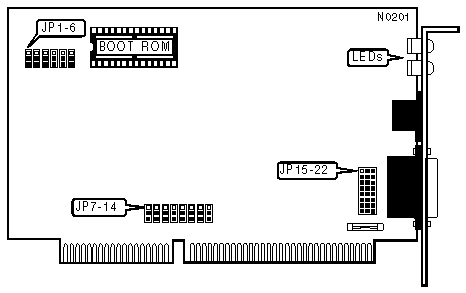

ETHER-T PC/AT ADAPTER Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8/16-bit ISA
Topology	Star
Wiring Type	Shielded/Unshielded twisted pair AUI Transceiver via DB-15 port
Boot ROM	Not Available

CABLE TYPE
Type		JP15-22
»	Shielded/Unshielded twisted pair	Pins 1 & 2 Closed
	AUI transceiver via DB-15 port	Pins 2 & 3 Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	Blinking	Collision detected on network
LED1	Red	On	Too many collisions; possible network problem
LED2	Green	On	Good network cabling connection.
LED2	Green	Off	Bad connection, or a break in the cabling.
LED3	Yellow	Blinking	Data is being received.
LED4	Green	Blinking	Data is being transmitted.

BOOT ROM SETTINGS
Condition		JP7	JP8	JP9	JP10	JP11	JP12	JP13	JP14
»	Disabled	2&3	1&2	1&2	2&3	2&3	1&2	2&3	2&3
Note: Pins designated should be in the closed position. This board was designed with a boot ROM socket, but it was never implemented. Therefore jumpers JP7 to JP14 must always be set as they are shown in this table.

I/O BASE ADDRESS
I/O	JP1	JP2	JP3	JP4	JP5	JP6
100h	Open	Closed	Open	Open	Open	Open
110h	Open	Closed	Open	Open	Open	Closed
120h	Open	Closed	Open	Open	Closed	Open
130h	Open	Closed	Open	Open	Closed	Closed
140h	Open	Closed	Open	Closed	Open	Open
150h	Open	Closed	Open	Closed	Open	Closed
160h	Open	Closed	Open	Closed	Closed	Open
170h	Open	Closed	Open	Closed	Closed	Closed
180h	Open	Closed	Closed	Open	Open	Open
190h	Open	Closed	Closed	Open	Open	Closed
1A0h	Open	Closed	Closed	Open	Closed	Open
1B0h	Open	Closed	Closed	Open	Closed	Closed
1C0h	Open	Closed	Closed	Closed	Open	Open
1D0h	Open	Closed	Closed	Closed	Open	Closed
1E0h	Open	Closed	Closed	Closed	Closed	Open
1F0h	Open	Closed	Closed	Closed	Closed	Closed
200h	Closed	Open	Open	Open	Open	Open
210h	Closed	Open	Open	Open	Open	Closed
220h	Closed	Open	Open	Open	Closed	Open
230h	Closed	Open	Open	Open	Closed	Closed
240h	Closed	Open	Open	Closed	Open	Open
250h	Closed	Open	Open	Closed	Open	Closed
260h	Closed	Open	Open	Closed	Closed	Open
270h	Closed	Open	Open	Closed	Closed	Closed
280h	Closed	Open	Closed	Open	Open	Open
290h	Closed	Open	Closed	Open	Open	Closed
2A0h	Closed	Open	Closed	Open	Closed	Open
2B0h	Closed	Open	Closed	Open	Closed	Closed
2C0h	Closed	Open	Closed	Closed	Open	Open
2D0h	Closed	Open	Closed	Closed	Open	Closed
2E0h	Closed	Open	Closed	Closed	Closed	Open
2F0h	Closed	Open	Closed	Closed	Closed	Closed
300h	Closed	Closed	Open	Open	Open	Open
310h	Closed	Closed	Open	Open	Open	Closed
320h	Closed	Closed	Open	Open	Closed	Open
330h	Closed	Closed	Open	Open	Closed	Closed
340h	Closed	Closed	Open	Closed	Open	Open
350h	Closed	Closed	Open	Closed	Open	Closed
360h	Closed	Closed	Open	Closed	Closed	Open
370h	Closed	Closed	Open	Closed	Closed	Closed
380h	Closed	Closed	Closed	Open	Open	Open
390h	Closed	Closed	Closed	Open	Open	Closed
3A0h	Closed	Closed	Closed	Open	Closed	Open
3B0h	Closed	Closed	Closed	Open	Closed	Closed
3C0h	Closed	Closed	Closed	Closed	Open	Open
3DOh	Closed	Closed	Closed	Closed	Open	Closed
3E0h	Closed	Closed	Closed	Closed	Closed	Open
3F0h	Closed	Closed	Closed	Closed	Closed	Closed
