ETHER-T MAC 10BASE-T Network Card Settings and Configuration
DAVID SYSTEMS, INC.
ETHER-T MAC 10BASE-T
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 32-Bit NuBus (Apple) |
Topology | Star Linear Bus |
Wiring Type | Shielded/Unshielded twisted pair RG58A/U 50ohm coaxial |
Boot ROM | Not Available |
CABLE TYPE | ||

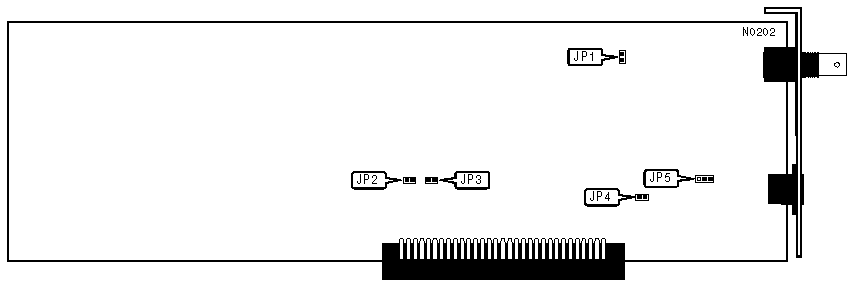

Type | JP1 | |
| » | Shielded/Unshielded twisted pair | Open |
RG-58A/U 50ohm coaxial | Closed | |
LINK STATUS TEST | ||
Link Status Test | JP2 | |
| » | Enabled | Off |
Disabled | On | |
Note: If the network is pre-10BASE-T, you will need to disabled the link status test. | ||
SQE (SIGNAL QUALITY ERROR) ENABLE/DISABLE | ||
Condition | JP3 | |
| » | SQE enabled | Closed |
SQE disabled | Open | |
Note: When using Shielded/Unshielded twisted pair, SQE should be disabled. | ||
CABLE TYPE | ||
Condition | JP4 | |
| » | Shielded/Unshielded twisted pair | Closed |
RG-58A/U 50ohm coaxial | Open | |
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
JP5 | Unknown |
