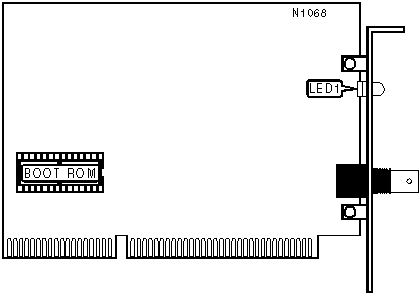

EN-2320PB Network Card Settings and Configuration
DANPEX CORPORATION
EN-2320PB
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus |
Wiring Type | RG-58A/U 50ohm coaxial |
Boot ROM | Available |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | Blinking | Data is being transmitted/received |
LED1 | Off | Data is not being transmitted/received |
