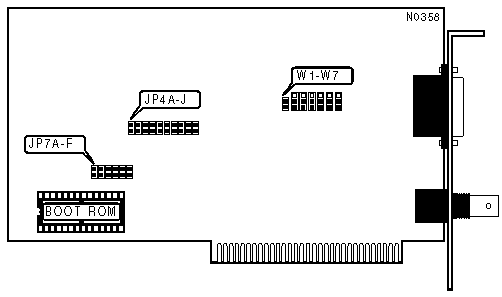

EN-1000 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

INTERRUPT REQUEST
IRQ		JP4A	JP4B	JP4C	JP4D
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

I/O BASE ADDRESS
Address		JP4I	JP4J
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

BOOT ROM
Setting		JP7A
»	Disabled	Open
	Enabled	Closed

BASE MEMORY ADDRESS
Address		JP7B	JP7C	JP7D	JP7E	JP7F
	C0000h	Closed	Closed	Closed	Closed	Closed
	C2000h	Open	Closed	Closed	Closed	Closed
	C4000h	Closed	Open	Closed	Closed	Closed
	C6000h	Open	Open	Closed	Closed	Closed
	C8000h	Closed	Closed	Open	Closed	Closed
	CA000h	Open	Closed	Open	Closed	Closed
	CC000h	Closed	Open	Open	Closed	Closed
	CE000h	Open	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Closed	Open	Closed
	D2000h	Open	Closed	Closed	Open	Closed
	D4000h	Closed	Open	Closed	Open	Closed
	D6000h	Open	Open	Closed	Open	Closed
»	D8000h	Closed	Closed	Open	Open	Closed
	DA000h	Open	Closed	Open	Open	Closed
	DC000h	Closed	Open	Open	Open	Closed
	DE000h	Open	Open	Open	Open	Closed
	E0000h	Closed	Closed	Closed	Closed	Open
	E2000h	Open	Closed	Closed	Closed	Open
	E4000h	Closed	Open	Closed	Closed	Open
	E6000h	Open	Open	Closed	Closed	Open
	E8000h	Closed	Closed	Open	Closed	Open
	EA000h	Open	Closed	Open	Closed	Open
	EC000h	Closed	Open	Open	Closed	Open
	EE000h	Open	Open	Open	Closed	Open
	F0000h	Closed	Closed	Closed	Open	Open
	F2000h	Open	Closed	Closed	Open	Open
Note:Addresses C6000h - CA000h cannot be used in a PC/XT type system. Addresses C0000h - C4000h & E0000h - F2000h cannot be used in a PC/AT type system.

CABLE TYPE
Type		W1	W2 - W7
»	RG58A/U 50ohm coaxial	Closed	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Open	Pins 2 & 3 closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP4E - JP4H	Open
