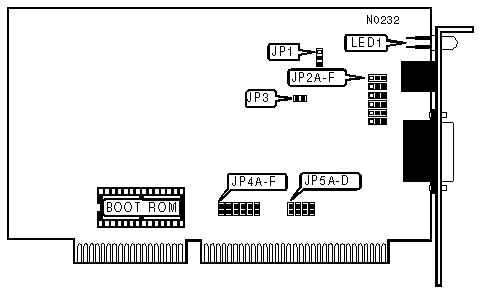

Aquila AQ-2000TP Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair AUI Transceiver via DB-15 port
Boot ROM	Available

LINK INTEGRITY TEST
Setting		JP1
»	Enabled	Pins 2 & 3 Closed
	Disabled	Pins 1 & 2 Closed
Note:The link integrity test is only valid when the cable type is unshielded twisted pair.

CABLE TYPE
Type		JP2A - JP2F	JP3
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 Closed	Open
	AUI transceiver via DB-15 port	Pins 1 & 2 Closed	Closed

BOOT ROM
Setting		JP4A
»	Disabled	Open
	Enabled	Closed

BOOT ROM ADDRESS
Address		JP4C	JP4D
»	C8000h	Open	Open
	CC000h	Closed	Open
	D0000h	Open	Closed
	D4000h	Closed	Closed

I/O BASE ADDRESS
Address		JP4E	JP4F
»	300h	Open	Open
	320h	Closed	Open
	340h	Open	Closed
	360h	Closed	Closed

INTERRUPT REQUEST
IRQ		JP5A	JP5B	JP5C	JP5D
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP4B	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Collision detected on network
LED1	Red	Off	Normal operation
