AN-120 /AN-220, AN-120S/AN-120BT Network Card Settings and Configuration

DANPEX CORPORATION

AN-120 /AN-220, AN-120S/AN-120BT

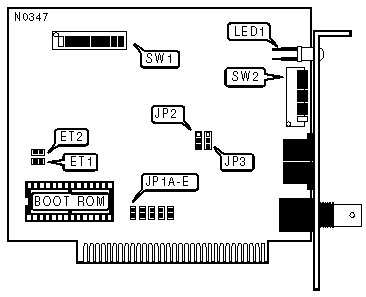

NIC Type
ARCnet
Transfer Rate
2.5Mbps
Data Bus
8-bit ISA
Topology
Star (AN-120)
Linear Bus (AN-220)
Wiring Type
Shielded/Unshielded twisted pair
RG62A/U 93ohm coaxial
Boot ROM
Available

NODE ADDRESS
Node
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
0
-
-
-
-
-
-
-
-
1
Off
On
On
On
On
On
On
On
2
On
Off
On
On
On
On
On
On
3
Off
Off
On
On
On
On
On
On
4
On
On
Off
On
On
On
On
On
251
Off
Off
On
Off
Off
Off
Off
Off
252
On
On
Off
Off
Off
Off
Off
Off
253
Off
On
Off
Off
Off
Off
Off
Off
254
On
Off
Off
Off
Off
Off
Off
Off
255
Off
Off
Off
Off
Off
Off
Off
Off
Note:Node address 0 is used for messaging between nodes and must not be used.
A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1)

BASE MEMORY ADDRESS & BOOT ROM ADDRESS
Base Address
Boot ROM
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5

C0000 - C07FFh
C2000 - C3FFFh
On
On
On
On
On

C0800 - C0FFFh
C2000 - C3FFFh
Off
On
On
On
On

C1000 - C17FFh
C2000 - C3FFFh
On
Off
On
On
On

C1800 - C1FFFh
C2000 - C3FFFh
Off
Off
On
On
On

C4000 - C47FFh
C6000 - C7FFFh
On
On
Off
On
On

C4800 - C4FFFh
C6000 - C7FFFh
Off
On
Off
On
On

C5000 - C57FFh
C6000 - C7FFFh
On
Off
Off
On
On

C5800 - C5FFFh
C6000 - C7FFFh
Off
Off
Off
On
On

CC000 - CC7FFh
CE000 - CFFFFh
On
On
On
Off
On

CC800 - CCFFFh
CE000 - CFFFFh
Off
On
On
Off
On

CD000 - CD7FFh
CE000 - CFFFFh
On
Off
On
Off
On

CD800 - CDFFFh
CE000 - CFFFFh
Off
Off
On
Off
On
»
D0000 - D07FFh
D2000 - D3FFFh
On
On
Off
Off
On

D0800 - D0FFFh
D2000 - D3FFFh
Off
On
Off
Off
On

D1000 - D17FFh
D2000 - D3FFFh
On
Off
Off
Off
On

D1800 - D1FFFh
D2000 - D3FFFh
Off
Off
Off
Off
On

D4000 - D47FFh
D6000 - D7FFFh
On
On
On
On
Off

D4800 - D4FFFh
D6000 - D7FFFh
Off
On
On
On
Off

D5000 - D57FFh
D6000 - D7FFFh
On
Off
On
On
Off

D5800 - D5FFFh
D6000 - D7FFFh
Off
Off
On
On
Off

D8000 - D87FFh
DA000 - DBFFFh
On
On
Off
On
Off

D8800 - D8FFFh
DA000 - DBFFFh
Off
On
Off
On
Off

D9000 - D97FFh
DA000 - DBFFFh
On
Off
Off
On
Off

D9800 - D9FFFh
DA000 - DBFFFh
Off
Off
Off
On
Off

DC000 - DC7FFh
DE000 - DFFFFh
On
On
On
Off
Off

DC800 - DCFFFh
DE000 - DFFFFh
Off
On
On
Off
Off

DD000 - DD7FFh
DE000 - DFFFFh
On
Off
On
Off
Off

DD800 - DDFFFh
DE000 - DFFFFh
Off
Off
On
Off
Off

E0000 - E07FFh
E2000 - E2FFFh
On
On
Off
Off
Off

E0800 - E0FFFh
E2000 - E2FFFh
Off
On
Off
Off
Off

E1000 - E17FFh
E2000 - E2FFFh
On
Off
Off
Off
Off

E1800 - E1FFFh
E2000 - E2FFFh
Off
Off
Off
Off
Off

I/O BASE ADDRESS
Address
SW1/6
SW1/7
SW1/8

260-26Fh
On
On
On

290-29Fh
Off
On
On
»
2E0-2EFh
On
Off
On

2F0-2FFh
Off
Off
On

300-30Fh
On
On
Off

350-35Fh
Off
On
Off

380-38Fh
On
Off
Off

3E0-3EFh
Off
Off
Off

BOOT ROM
Setting
SW1/9
»
Disabled
Off

Enabled
On

ONBOARD TERMINATOR
Setting
SW1/10
»
Disabled
Off

Enabled
On
Note:If the card is the last in the line of network cards, the onboard terminator may be enabled instead of using a T-connector and an external terminator. This setting is valid only with the AN-220. If using an AN-120, SW1/10 must be off. (Star topologies do not require the use of terminators)

RESPONSE AND RECONFIGURATION TIMEOUTS
Response Time
Idle Time
Reconfiguration Time
ET1
ET2
»
78µs
86µs
840ms
Open
Open

285µs
316µs
1680ms
Closed
Open

563µs
624µs
1680ms
Open
Closed

1130µs
1237µs
1680ms
Closed
Closed
Note:All NICs on the network must have this option set the same.

INTERRUPT REQUEST
IRQ
JP1A
JP1B
JP1C
JP1D
JP1E
»
2
Closed
Open
Open
Open
Open

3
Open
Closed
Open
Open
Open

4
Open
Open
Closed
Open
Open

5
Open
Open
Open
Closed
Open

7
Open
Open
Open
Open
Closed

CABLE TYPE
Type
JP2
JP3
»
RG62A/U 93ohm coaxial
Pins 2 & 3 closed
Pins 2 & 3 closed

Shielded/Unshielded twisted pair
Pins 1 & 2 closed
Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED
Status
Condition
LED1
On
Card is receiving power and is operating properly
LED1
Blinking
Data is being transmitted or received
LED1
Off
Card is not receiving power or is defective
