Aquila AQ-NE/2TP (MCA) Network Card Settings and Configuration







DANPEX CORPORATION (ADI SYSTEMS, INC.)

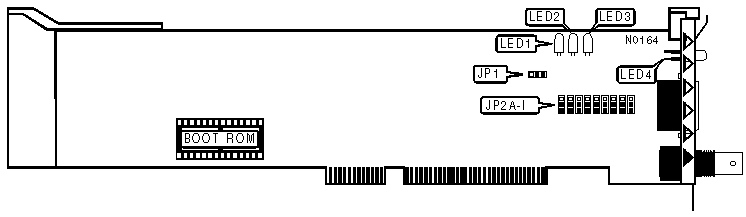

Aquila AQ-NE/2TP (MCA)

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit MCA

Topology

Star

Wiring Type

Unshielded twisted pair

AUI Transceiver via DB-15 port

Boot ROM

Available

LINK INTEGRITY TEST

Setting

JP31

»

Enabled

Pins 1 & 2 Closed



Disabled

Pins 2 & 3 Closed

Note:Link Integrity is only used with 10Base-T wiring. When using an AUI transciever, the test should be disabled.

CABLE TYPE

Type

JP2A - JP2I

»

Unshielded twisted pair

Pins 2 & 3 Closed



AUI transceiver via DB-15 port

Pins 1 & 2 Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Twisted pair network connection is good

LED1

Green

Off

Twisted pair network connection is broken

LED2

Yellow

Blinking

Data is being transmitted or received

LED2

Yellow

Off

Data is not being transmitted or received

LED3

Red

On

Collision detected on network

LED3

Red

Off

Normal operation

LED4

Green

Blinking

Data is being received

LED4

Green

Off

Data is not being received
