DT-220 Network Card Settings and Configuration

D-LINK

DT-220

NIC Type
Token-Ring
Transfer Rate
4/16Mbps
Data Bus
16-bit ISA
Topology
Ring
Wiring Type
Unshielded twisted pair
Shielded twisted pair (DB-9 port)
Boot ROM
Available (Built-in Remote Program Load)

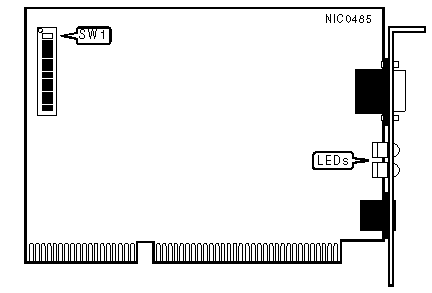

BOOT ROM ADDRESS
Address
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
C0000h
Off
On
On
On
On
On
C2000h
Off
On
On
On
On
Off
C4000h
Off
On
On
On
Off
On
C6000h
Off
On
On
On
Off
Off
C8000h
Off
On
On
Off
On
On
CA000h
Off
On
On
Off
On
Off
CC000h
Off
On
On
Off
Off
On
CE000h
Off
On
On
Off
Off
Off
D0000h
Off
On
Off
On
On
On
D2000h
Off
On
Off
On
On
Off
D4000h
Off
On
Off
On
Off
On
D6000h
Off
On
Off
On
Off
Off
D8000h
Off
On
Off
Off
On
On
DA000h
Off
On
Off
Off
On
Off
DC000h
Off
On
Off
Off
Off
On
DE000h
Off
On
Off
Off
Off
Off

INTERRUPT REQUEST
IRQ
SW1/7
SW1/8

2/9
On
On
»
3
On
Off

7
Off
Off

PRIMARY/SECONDARY CARD SELECT
Setting
SW1/9
»
Primary
Off

Secondary
On
Note:If two NICs are installed in a system, one must be set to primary, and the other to secondary.

SHARED MEMORY SIZE
Size
SW1/10
SW1/11

8KB
On
On
»
16KB
Off
On

32KB
On
Off

64KB
Off
Off
Note:The 16KB option is the only setting that supports memory paging.

NETWORK SEGMENT SPEED
Speed
SW1/12
16Mbps
Off
4Mbps
On
Note:All NICs on the network segment must be set to the same speed.

DIAGNOSTIC LED(S)
Amber LED
Green LED
Condition
On
Off
Network speed is set to 4Mbps
Off
On
Network speed is set to 16Mbps
Note:The amber LED will light momentarily when power is applied to the NIC. The appropriate LED will

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

DT-220 Network Card Settings and Configuration

Search

My Books

Discover

NIC Type	Token-Ring
Transfer Rate	4/16Mbps
Data Bus	16-bit ISA
Topology	Ring
Wiring Type	Unshielded twisted pair Shielded twisted pair (DB-9 port)
Boot ROM	Available (Built-in Remote Program Load)

BOOT ROM ADDRESS
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
C0000h	Off	On	On	On	On	On
C2000h	Off	On	On	On	On	Off
C4000h	Off	On	On	On	Off	On
C6000h	Off	On	On	On	Off	Off
C8000h	Off	On	On	Off	On	On
CA000h	Off	On	On	Off	On	Off
CC000h	Off	On	On	Off	Off	On
CE000h	Off	On	On	Off	Off	Off
D0000h	Off	On	Off	On	On	On
D2000h	Off	On	Off	On	On	Off
D4000h	Off	On	Off	On	Off	On
D6000h	Off	On	Off	On	Off	Off
D8000h	Off	On	Off	Off	On	On
DA000h	Off	On	Off	Off	On	Off
DC000h	Off	On	Off	Off	Off	On
DE000h	Off	On	Off	Off	Off	Off

INTERRUPT REQUEST
IRQ		SW1/7	SW1/8
	2/9	On	On
»	3	On	Off
	7	Off	Off

PRIMARY/SECONDARY CARD SELECT
Setting		SW1/9
»	Primary	Off
	Secondary	On
Note:If two NICs are installed in a system, one must be set to primary, and the other to secondary.

SHARED MEMORY SIZE
Size		SW1/10	SW1/11
	8KB	On	On
»	16KB	Off	On
	32KB	On	Off
	64KB	Off	Off
Note:The 16KB option is the only setting that supports memory paging.

NETWORK SEGMENT SPEED
Speed	SW1/12
16Mbps	Off
4Mbps	On
Note:All NICs on the network segment must be set to the same speed.

DIAGNOSTIC LED(S)
Amber LED	Green LED	Condition
On	Off	Network speed is set to 4Mbps
Off	On	Network speed is set to 16Mbps
Note:The amber LED will light momentarily when power is applied to the NIC. The appropriate LED will
