DA-200+ Network Card Settings and Configuration

D-LINK SYSTEMS, INC.

DA-200+

NIC Type
ARCnet
Transfer Rate
2.5Mbps
Data Bus
16-bit ISA
Topology
Star
Linear Bus
Wiring Type
RG-62A/U 93ohm coaxial
Boot ROM
Available

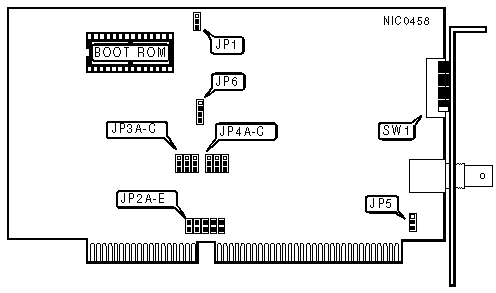

NODE ADDRESS
Node
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
0
-
-
-
-
-
-
-
-
1
Off
Off
Off
Off
Off
Off
Off
On
2
Off
Off
Off
Off
Off
Off
On
Off
3
Off
Off
Off
Off
Off
Off
On
On
4
Off
Off
Off
Off
Off
On
Off
Off
251
On
On
On
On
On
Off
On
On
252
On
On
On
On
On
On
Off
Off
253
On
On
On
On
On
On
Off
On
254
On
On
On
On
On
On
On
Off
255
On
On
On
On
On
On
On
On
Note: Node address 0 is used for messaging between nodes and must not be used.
A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn on the switches and add the values of the on switches to obtain the correct node address. (On=1, Off=0)

BOOT ROM
Setting
JP1
»
Disabled
Pins 2 & 3 closed

Enabled
Pins 1 & 2 closed

INTERRUPT REQUEST
IRQ
JP2A
JP2B
JP2C
JP2D
JP2E
3
Open
Closed
Open
Open
Open
4
Open
Open
Closed
Open
Open
5
Open
Open
Open
Closed
Open
7
Open
Open
Open
Open
Closed
9
Closed
Open
Open
Open
Open

I/O BASE ADDRESS
Address
JP3A
JP3B
JP3C

260h
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 2 & 3 closed

290h
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 1 & 2 closed
»
2E0h
Pins 2 & 3 closed
Pins 1 & 2 closed
Pins 2 & 3 closed

300h
Pins 1 & 2 closed
Pins 2 & 3 closed
Pins 2 & 3 closed

350h
Pins 1 & 2 closed
Pins 2 & 3 closed
Pins 1 & 2 closed

380h
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 2 & 3 closed

3E0h
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed

BOOT ROM ADDRESS
Address
JP4A
JP4B
JP4C
C0000 - C3FFFh
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 2 & 3 closed
C4000 - C7FFFh
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 1 & 2 closed
CC000 - CFFFFh
Pins 2 & 3 closed
Pins 1 & 2 closed
Pins 2 & 3 closed
D0000 - D3FFFh
Pins 2 & 3 closed
Pins 1 & 2 closed
Pins 1 & 2 closed
D4000 - D7FFFh
Pins 1 & 2 closed
Pins 2 & 3 closed
Pins 2 & 3 closed
D8000 - DBFFFh
Pins 1 & 2 closed
Pins 2 & 3 closed
Pins 1 & 2 closed
DC000 - DFFFFh
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 2 & 3 closed

TOPOLOGY
Setting
JP5
»
Star
Pins 2 & 3 closed

Linear bus
Pins 1 & 2 closed
Note:All NICs on the network segment must have this option set the same.

SHARED MEMORY MODE
Mode
JP6
»
16-bit/2KB
Pins 1 & 2 closed

16-bit/128KB
Pins 2 & 3 closed

8-bit/2KB
Pins 3 & 4 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

DA-200+ Network Card Settings and Configuration

Search

My Books

Discover

NIC Type	ARCnet
Transfer Rate	2.5Mbps
Data Bus	16-bit ISA
Topology	Star Linear Bus
Wiring Type	RG-62A/U 93ohm coaxial
Boot ROM	Available

NODE ADDRESS
Node	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
0	-	-	-	-	-	-	-	-
1	Off	Off	Off	Off	Off	Off	Off	On
2	Off	Off	Off	Off	Off	Off	On	Off
3	Off	Off	Off	Off	Off	Off	On	On
4	Off	Off	Off	Off	Off	On	Off	Off
251	On	On	On	On	On	Off	On	On
252	On	On	On	On	On	On	Off	Off
253	On	On	On	On	On	On	Off	On
254	On	On	On	On	On	On	On	Off
255	On	On	On	On	On	On	On	On
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn on the switches and add the values of the on switches to obtain the correct node address. (On=1, Off=0)

BOOT ROM
Setting		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

INTERRUPT REQUEST
IRQ	JP2A	JP2B	JP2C	JP2D	JP2E
3	Open	Closed	Open	Open	Open
4	Open	Open	Closed	Open	Open
5	Open	Open	Open	Closed	Open
7	Open	Open	Open	Open	Closed
9	Closed	Open	Open	Open	Open

I/O BASE ADDRESS
Address		JP3A	JP3B	JP3C
	260h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	290h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
»	2E0h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	300h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	350h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	380h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	3E0h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

BOOT ROM ADDRESS
Address	JP4A	JP4B	JP4C
C0000 - C3FFFh	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
C4000 - C7FFFh	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
CC000 - CFFFFh	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
D0000 - D3FFFh	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
D4000 - D7FFFh	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
D8000 - DBFFFh	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
DC000 - DFFFFh	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed

TOPOLOGY
Setting		JP5
»	Star	Pins 2 & 3 closed
	Linear bus	Pins 1 & 2 closed
Note:All NICs on the network segment must have this option set the same.

SHARED MEMORY MODE
Mode		JP6
»	16-bit/2KB	Pins 1 & 2 closed
	16-bit/128KB	Pins 2 & 3 closed
	8-bit/2KB	Pins 3 & 4 closed
