DE-220ECT Network Card Settings and Configuration
D-LINK
DE-220ECT
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus,Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available (location unidentified |

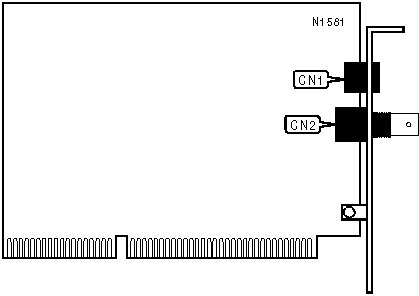

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | RG-58A/U 50ohm coaxial port | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Power is on |
LED1 | Green | Blinking | Data is being transmitted on 10Base-T |
LED1 | Green | Off | Power is off |
LED2 | Green | On | Network connection is good |
LED2 | Green | Blinking | Data is being received on 10Base-T |
LED2 | Green | Off | Network connection is broken |
LED3 | Yellow | On | Abnormal packets detected on network |
LED3 | Yellow | Blinking | Collision is detected on network |
LED3 | Yellow | Off | Collision is not detected on network |
Note: The locations of LED1, LED2 and LED3 are unidentified. | |||
