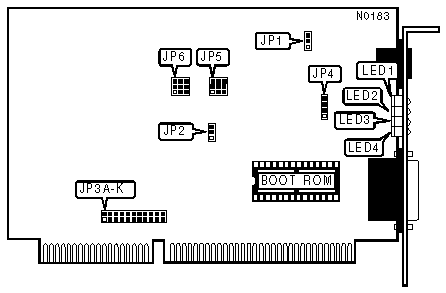

DE-200TP for PC AT Network Card Settings and Configuration

D-LINK

DE-200TP for PC AT

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Star
Wiring Type
Shielded/Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM
Available

INTERRUPT REQUEST
IRQ
JP3a
JP3B
JP3C
JP3D
JP3E
JP3F
JP3G
JP3H
JP3I
JP3J
JP3K
»
3
Closed
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open

4
Open
Closed
Open
Open
Open
Open
Open
Open
Open
Open
Open

5
Open
Open
Closed
Open
Open
Open
Open
Open
Open
Open
Open

6
Open
Open
Open
Closed
Open
Open
Open
Open
Open
Open
Open

7
Open
Open
Open
Open
Closed
Open
Open
Open
Open
Open
Open

9
Open
Open
Open
Open
Open
Closed
Open
Open
Open
Open
Open

10
Open
Open
Open
Open
Open
Open
Closed
Open
Open
Open
Open

11
Open
Open
Open
Open
Open
Open
Open
Closed
Open
Open
Open

12
Open
Open
Open
Open
Open
Open
Open
Open
Closed
Open
Open

14
Open
Open
Open
Open
Open
Open
Open
Open
Open
Closed
Open

15
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open
Closed

DIAGNOSTIC LED(S)
LED
Status
Condition
LED1
On
Power is on
LED1
Blinking
Data is being transmitted
LED2
On
Network connection is good
LED2
Blinking
Data is being received
LED3
On
Collision detected on the network
LED3
Off
No collisions detected on the network
LED4
Off
Normal operation
LED4
On
Transmission interrupted due to abnormally long data stream output

CHIP SET SELECTION
Type
JP4
»
Standard
Pins 1 & 2 Closed

Non-standard 1
Pins 2 & 3 Closed

Non-standard 2
Pins 3 & 4 closed
Note:Non-standard PC AT systems and early versions of Chips & Technologies chip sets are not timing compatible

CABLE TYPE
Type
JP1/Jumpers 1-7
»
Shielded/Unshielded twisted pair
Pins 2 & 3 Closed

AUI Transceiver via DB-15 port
Pins 1 & 2 Closed

BOOT ROM ADDRESS - JP5
Address
Jumper 1
Jumper 2
Jumper 3

C0000H
Pins 1 & 2 Closed
Pins 1 & 2 Closed
Pins 1 & 2 Closed

C4000H
Pins 2 & 3 Closed
Pins 1 & 2 Closed
Pins 1 & 2 Closed
»
C8000H
Pins 1 & 2 Closed
Pins 2 & 3 Closed
Pins 1 & 2 Closed

CC000H
Pins 2 & 3 Closed
Pins 2 & 3 Closed
Pins 1 & 2 Closed

D0000H
Pins 1 & 2 Closed
Pins 1 & 2 Closed
Pins 2 & 3 Closed

D4000H
Pins 2 & 3 Closed
Pins 1 & 2 Closed
Pins 2 & 3 Closed

D8000H
Pins 1 & 2 Closed
Pins 2 & 3 Closed
Pins 2 & 3 Closed

DC000H
Pins 2 & 3 Closed
Pins 2 & 3 Closed
Pins 2 & 3 Closed

BOOT ROM SETTINGS
Setting
JP2
»
Disabled
Pins 2 & 3 Closed

Enabled
Pins 1 & 2 Closed

I/O BASE ADDRESS - JP6
Address
Jumper 1
Jumper 2
Jumper 3
200H
Pins 1 & 2 Closed
Pins 1 & 2 Closed
Pins 1 & 2 Closed
220H
Pins 2 & 3 Closed
Pins 1 & 2 Closed
Pins 1 & 2 Closed
240H
Pins 1 & 2 Closed
Pins 1 & 2 Closed
Pins 2 & 3 Closed
260H
Pins 2 & 3 Closed
Pins 1 & 2 Closed
Pins 2 & 3 Closed
300H
Pins 1 & 2 Closed
Pins 2 & 3 Closed
Pins 1 & 2 Closed
320H
Pins 2 & 3 Closed
Pins 2 & 3 Closed
Pins 1 & 2 Closed
340H
Pins 1 & 2 Closed
Pins 2 & 3 Closed
Pins 2 & 3 Closed
360H
Pins 2 & 3 Closed
Pins 2 & 3 Closed
Pins 2 & 3 Closed
