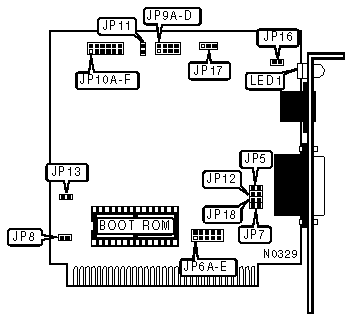

UNIVERSAL SERIES ENET-TP/U (REV. A1) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star
Wiring Type	Shielded/Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

ETHERNET VERSION SELECT
Type		JP5
»	Ethernet version 2, IEEE802.3	Open
	Ethernet version 1	Closed
Note:Most modern Ethernet installations use Version 2.

INTERRUPT REQUEST
IRQ		JP6A	JP6B	JP6C	JP6D	JP6E
	2	Closed	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open
	4	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Closed

MEMORY WAIT STATE
Setting		JP7
»	4 wait states	Open
	2 wait states	Closed
Note:Use 2 wait states when using the NIC in a 6MHz or slower PC and on-board SRAM is 35ns.

I/O BASE ADDRESS
Address		JP9A	JP9B	JP9C	JP9D
	200h	Closed	Closed	Closed	Closed
	220h	Closed	Closed	Closed	Open
	240h	Closed	Closed	Open	Closed
	260h	Closed	Closed	Open	Open
»	280h	Closed	Open	Closed	Closed
	2A0h	Closed	Open	Closed	Open
	2C0h	Closed	Open	Open	Closed
	2E0h	Closed	Open	Open	Open
	300h	Open	Closed	Closed	Closed
	320h	Open	Closed	Closed	Open
	340h	Open	Closed	Open	Closed
	360h	Open	Closed	Open	Open
	380h	Open	Open	Closed	Closed
	3A0h	Open	Open	Closed	Open
	3C0h	Open	Open	Open	Closed
	3E0h	Open	Open	Open	Open
Note:Address 300h is the factory suggested default for the NE1000 mode .

BOOT ROM ADDRESS
Address		JP10A	JP10B	JP10C	JP10D	JP10E	JP10F
	C0000h	Open	Closed	Closed	Closed	Closed	Closed
	C2000h	Open	Closed	Closed	Closed	Closed	Open
	C4000h	Open	Closed	Closed	Closed	Open	Closed
	C6000h	Open	Closed	Closed	Closed	Open	Open
	C8000h	Open	Closed	Closed	Open	Closed	Closed
	CA000h	Open	Closed	Closed	Open	Closed	Open
	CC000h	Open	Closed	Closed	Open	Open	Closed
	CE000h	Open	Closed	Closed	Open	Open	Open
	D0000h	Open	Closed	Open	Closed	Closed	Closed
»	D2000h	Open	Closed	Open	Closed	Closed	Open
	D4000h	Open	Closed	Open	Closed	Open	Closed
	D6000h	Open	Closed	Open	Closed	Open	Open
	D8000h	Open	Closed	Open	Open	Closed	Closed
	DA000h	Open	Closed	Open	Open	Closed	Open
	DC000h	Open	Closed	Open	Open	Open	Closed
	DE000h	Open	Closed	Open	Open	Open	Open
Note:Address C8000h is the factory suggested default for the NE1000 mode.

BOOT ROM
Setting		JP8
»	Disabled	Open
	Enabled	Closed

DRIVER COMPATIBILITY MODE
Mode		Driver	JP11
»	WD mode	ENETCPX, WD8003, or WDPLUS	Closed
	NE1000 mode	NE1000	Open

I/O WAIT STATE
Setting		JP12
»	4 wait states	Closed
	2 wait states	Open

CONNECTORS
Setting	Location
Network activity LED	JP13

CABLE TYPE
Type		JP16
»	twisted pair	Closed
	AUI transceiver via DB-15 port	Open

10BASE-T LINK INTEGRITY SELECT
Mode		JP17
»	Enabled	Pins 1 & 2 Closed
	Disabled	Pins 2 & 3 Closed
Note:When Link Integrity is enabled, LED1 will light in the presence of a good cable connection.

COMPUTER TYPE
Type		JP18
»	AT	Closed
	XT	Open
