NETELLIGENT 100 FDDI PCI DAS UTP Network Card Settings and Configuration

COMPAQ COMPUTER CORPORATION

NETELLIGENT 100 FDDI PCI DAS UTP

Card Type
Network Interface Card
NIC Type
FDDI
Maximum Onboard Memory
Unidentified
Boot ROM
Not available
Network Transfer Rate
100Mbps
Topology
Ring
Wiring Type
RJ-45 Unshielded twisted pair
Data Bus
32-bit PCI

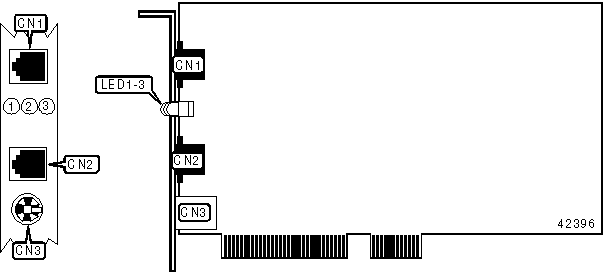

CONNECTIONS
Function
Label
Function
Label
RJ45 connector
CN1
Optical bypass connector
CN3
RJ45 connector
CN2

DIAGNOSTIC LED(S)
LED1 (Green)
LED2 (Yellow)
LED3 (Green)
Condition
Off
Off
Off
Driver not loaded
Off
On
Off
Station management code is running, controller is not connected to the network
On
Off
Off
Controller is active at port B
Off
Off
On
Controller is active at port A
On
Off
On
Controller is ready for use
