NETELIGENT 100 FDDI EISA DAS FIBER-MIC Network Card Settings and Configuration
COMPAQ COMPUTER CORPORATION
NETELIGENT 100 FDDI EISA DAS FIBER-MIC
Card Type | Network Interface Card |
NIC Type | FDDI |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 100Mbps |
Topology | Ring |
Wiring Type | Fiber optic cable |
Data Bus | 32-EISA |
CONNECTIONS | |||
Function | Location | Function | Location |

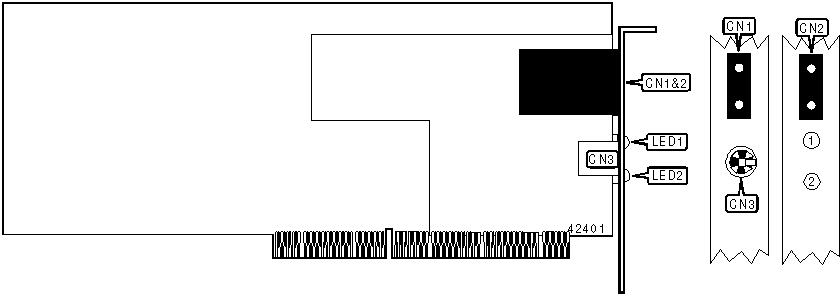

Fiber optic connector - MIC | CN1 | Optical bypass | CN3 |
Fiber optic connector - MIC | CN2 | ||
DIAGNOSTIC LED(S) | ||
LED1 (Green) | LED2 (Yellow) | Condition |
Off | Off | Driver not loaded |
Off | On | Station management code is running, controller is not connected to the network |
On | Off | Controller is ready for use |
