NETELLIGENT DUAL 10/100 TX PCI UTP CONTROLLER Network Card Settings and Configuration
COMPAQ COMPUTER CORPORATION
NETELLIGENT DUAL 10/100 TX PCI UTP CONTROLLER
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps, 100Mbps |
Topology | Linear Bus |
Wiring Type | 2 Unshielded twisted pair (RJ-45) |
Data Bus | 32-bit PCI |

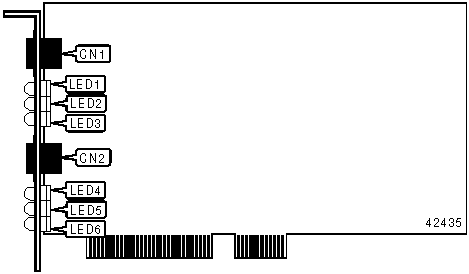

CONNECTIONS | |||
Function | Label | Function | Label |
UTP connector (RJ-45) | CN1 | UTP connector (RJ-45) | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unidentified | On | Network connection is 100Mbps (connector 1) |
LED1 | Unidentified | Off | Network connection is 10Mbps (connector 1) |
LED2 | Unidentified | On | Network connection is good (connector 1) |
LED2 | Unidentified | Off | Network connection is broken (connector 1) |
LED3 | Unidentified | On | Data is being transmitted or received (connector 1) |
LED3 | Unidentified | Off | Data is not being transmitted or received (connector 1) |
LED4 | Unidentified | On | Network connection is 100Mbps (connector 2) |
LED4 | Unidentified | Off | Network connection is 10Mbps (connector 2) |
LED5 | Unidentified | On | Network connection is good (connector 2) |
LED5 | Unidentified | Off | Network connection is broken (connector 2) |
LED6 | Unidentified | On | Data is being transmitted or received (connector 2) |
LED6 | Unidentified | Off | Data is not being transmitted or received (connector 2) |
