EMASTER+ EM110 T4 PCI COMBO Network Card Settings and Configuration
COGENT DATA TECHNOLOGIES, INC.
EMASTER+ EM110 T4 PCI COMBO
NIC Type | Ethernet |
Transfer Rate | 10/100Mbps |
Data Bus | PCI |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Not available |

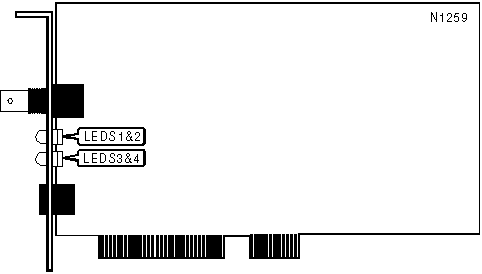

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Network activity is detected at 10Mbps |
LED1 | Yellow | Off | Network activity is not detected at 10Mbps |
LED2 | Green | On | 10Base-T network connection is good at 10Mbps |
LED2 | Green | Off | 10Base-T network connection is broken at 10Mbps |
LED3 | Yellow | On | Network activity is detected at 100Mbps |
LED3 | Yellow | Off | Network activity is not detected at 100Mbps |
LED4 | Green | Blinking | 10Base-T network connection is good at 100Mbps |
LED4 | Green | Off | 10Base-T network connection is broken at 100Mbps |
