CODENET-7568 Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	4K
Boot ROM	Unidentified
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

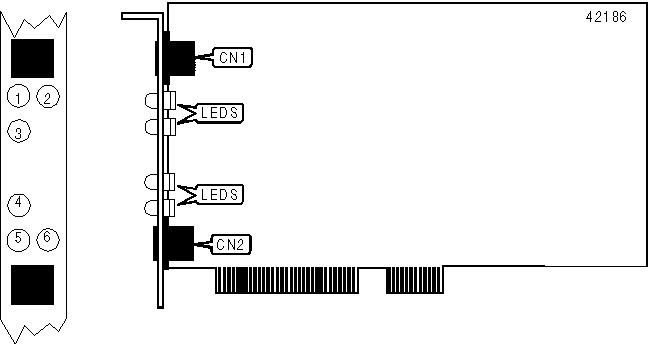

CONNECTIONS
Function	Label	Function	Label
UTP via RJ-45 connector (100Mbps port)	CN1	UTP via RJ-45 connector (10Mbps port)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Data is being received on 100Mbps port
LED1	Unidentified	Off	Data is not being received on 100Mbps port
LED2	Unidentified	On	Data is being transmitted on 100Mbps port
LED2	Unidentified	Off	Data is not being transmitted on 100Mbps port
LED3	Unidentified	On	Network connection is good on 100Mbps port
LED3	Unidentified	Off	Network connection is broken on 100Mbps port
LED4	Unidentified	On	Network connection is good on 10Mbps port
LED4	Unidentified	Off	Network connection is broken on 10Mbps port
LED5	Unidentified	On	Data is being received on 10Mbps port
LED5	Unidentified	Off	Data is not being received on 10Mbps port
LED6	Unidentified	On	Data is being transmitted on 10Mbps port
LED6	Unidentified	Off	Data is not being transmitted on 10Mbps port
